"Pellets Bites" prevention type /NGR

"Pellets Bites" is "0 (zero)" practically. The quality of pellets is maintainable because pellets are not bitten (not cut) (not smashed).Can also be used for prevention of motor trip, such as rubber, soft pellet was added.

Features

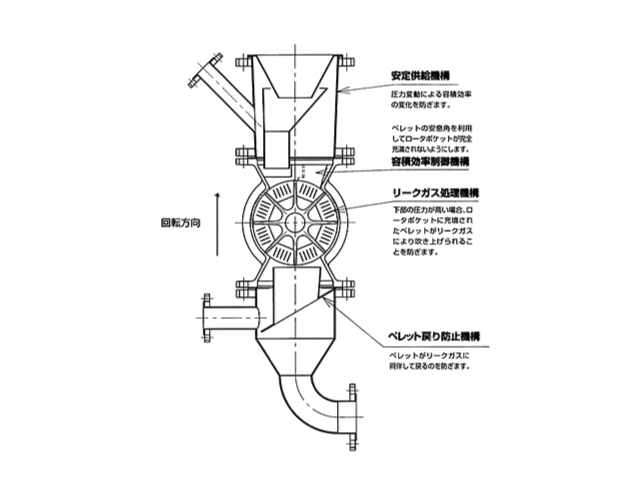

The proportion of “Pellets Bites” is under 6 pieces of pellets in 25kg (= about 1200 k pieces of pellets) We realize the high performance, and it means that the proportion of occurrence of fines and miss-cuts is under 1 ppm. The discharge rate is not changed by the fluctuation of sealing pressure. The discharge rate has linear characteristic according to changing the rotation speed of rotary feeder. We realize “Pellets Bites 0 (zero)” by using next 4 kinds of mechanisms, (Control of efficiency in rotor, Stable supplying, Handling the leakage gas, Prevention of returning pellets)

Standard type unit /N-GR

Three types about type A (No differential pressure type), type B (Upper pressurizing type), and type C (Lower pressurizing type). We have a type for a high seal, too. It can be used under 0.2MPa, and it means that it can be used for high pressure pneumatic conveying system.
