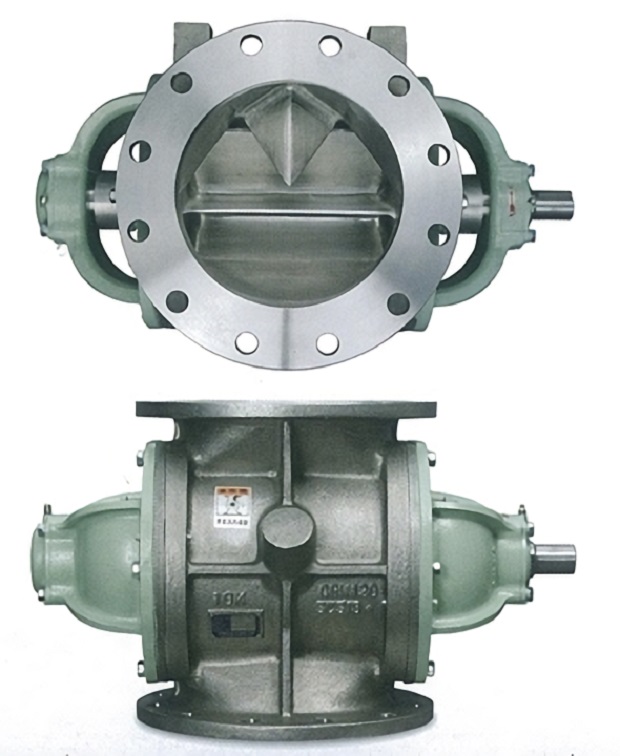

Rotary Feeder (Single)

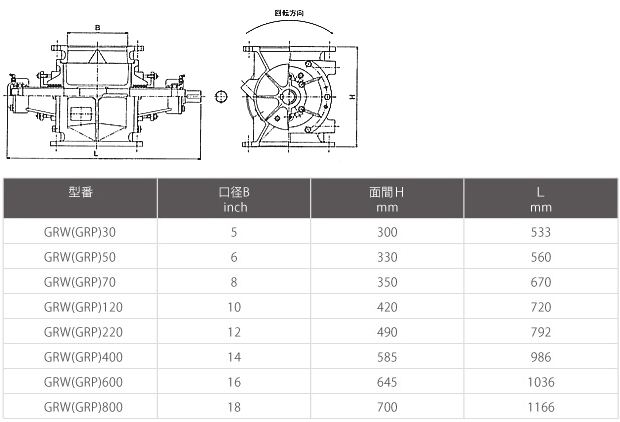

Standard type / GRW・GRP・GR
This type is a replacement type of the conventional type (GR). This type is usable at the low range of differential pressure (under 0.1MPa). The upper-and-lower flanges are a circle flange according to a piping standard. According to your request, we manufacture the flange of JIS10K,JIS5K, JPI and ASME standard without Flange thickness. (Flange thickness is our standard.) We manufacture the rotary valve (GRP) which has rectangular flange upon requests.
