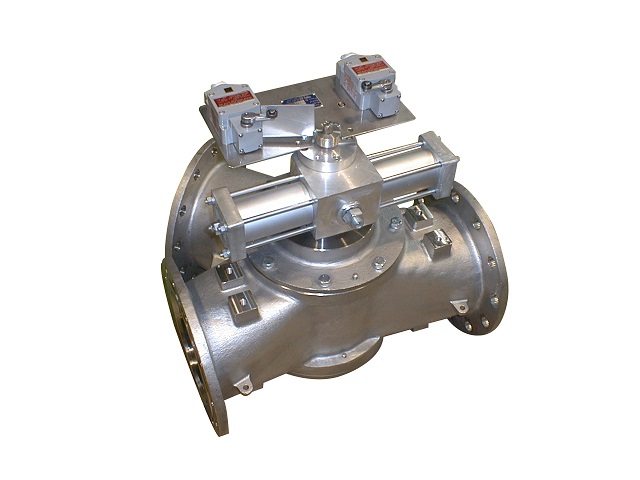

Automatic (Manual) Valve
Type GC･GH Diverter
Features
・The automatic version uses a torque-cylinder driving unit for easy maintenance and quick repositioning of the diverter.
・An O-ring replaces the conventional oil seal to seal the shaft for higher pressure-tightness.
・The diverter body is strong enough to withstand all piping stress.
・The face-to-face length of the casing is the same for the GC and GH versions of the same model, irrespenctive of flange standards.
・The shaft easily withstands the maximum cylinder output (working pressure0.7MPa) A square shaft reinforces the joint of the diverter.
・Simply adjust the torque cylinder to bring the rotor into position.
※The GH version has a Teflon-coated rotor to provide a tight seal.
(Leakage into an open channel is below 1/5 that of the GC version.)
